The TV Jones Difference

          The incredibly accurate vintage-style Filter'tron pickups has propelled TV Jones to the level of one of the best handmade, vintage-style pickup manufacturers around. In addition to the stellar Filter’Tron line, they  have applied that same attention to detail and pursuit of perfect tone to their versions of the P90, DeArmond, Tele, Humbucker and Strat pickups. All unique takes that have become very highly regarded.

      I över tre årtionden har Thomas V Jones, grundare av TV Jones Inc, vunnit respekt och goda lovord från mängder av gitarrister i världsklass. Hans gitarr-pickuper med den fantastiska tonen är en succé. Genom Tom´s samarbete med gitarristen Brian Setzer, vars gitarrer han arbetat med sedan 1993, utvecklades hans intresse för FilterTron pickupen på Brian´s 1959 Gretsch 6120.
     1998 valde Gretsch Tom´s pickuper till sina nya Hot Rod modeller. Tom blev även oberoende konsult för Gretsch Guitar Company avseende  pickup- och gitarr design. TV Jones har blivit ledande inom utveckling och tillverkning av nya gitarr-pickuper av högsta kvalitet. Det är TV Jones ambition att förse varje kund med den bästa gitarr-pickupen marknaden har att erbjuda.











GUITAR Pickups          BASS Pickups          Tillbehör           GITARRER







GUITAR PICKUPS

TV Classic

Vintage twang & growl



TV Classic Plus

Higher output and hotter
midrange growl with

fuller all-around tone
Brian Setzer Signature

Slightly higher output than
the TV Classic with clarity and
a tight/punchy low end
  NYHET!
Ray Butts Ful-Fidelity

The original FilterTron
invented by Ray Butts


Billy Zoom'Tron

A clear, subtle aggressive
punchy tone with a good
amount of headroom
Paul Yandell Duo-Tron

Combinding blades and polescrews
provides a big full sound with
exceptional string separation

Power'Tron

TV Classic on steroids -
Mixing the vintage tone of a
golden-age PAF with the rockabilly
twang of a late '50s Filter'Tron
Power'Tron Plus

A hotter PAF-like tone with
thicker highs and tighter lows
The hottest
TV Jones FilterTron


Super'Tron

Classic tone with extra punch,
b
old - full & clear


T-90


A classic P-90 design with a touch
of TV Jones sparkle and clarity

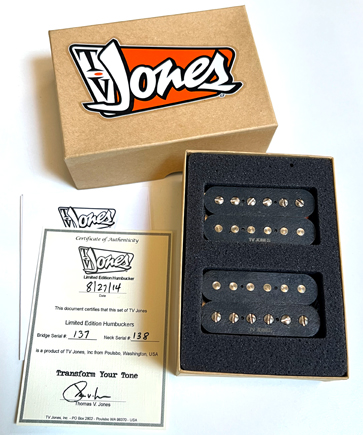

Limited Ed. Humbucker

Inspired by the great guitar
heroes
of the '60s-'70s. Cristal
clear tone with definition & punch

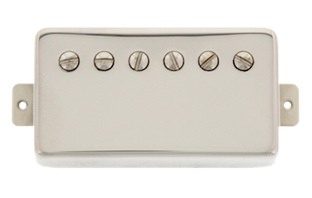

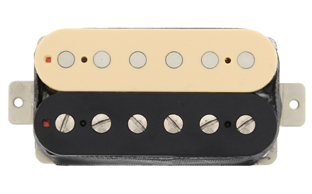

Starwood Humbucker

 Clear, articulate and punchy
Smooth, clear highs in the bridge
and full-bass tone in the neck position

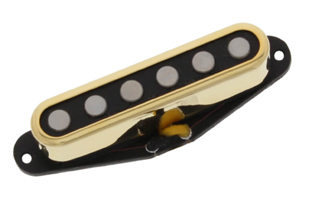

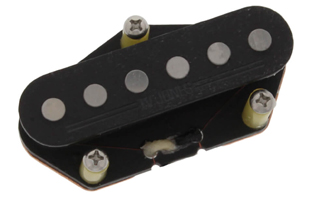

Starwood Tele

 Classic Tele sound with a
dynamic & transparent top end

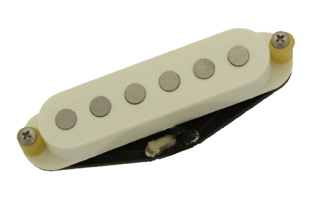

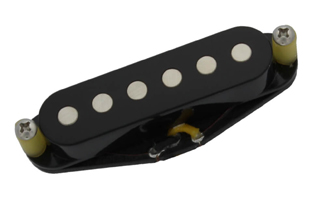

Starwood Strat

 Classic Strat pickups with fuller
presence and bright top end

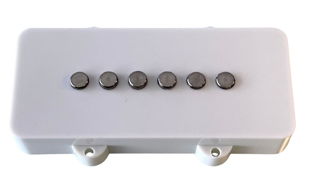

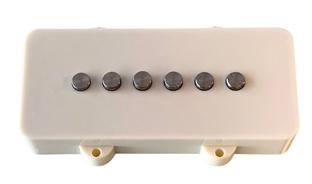

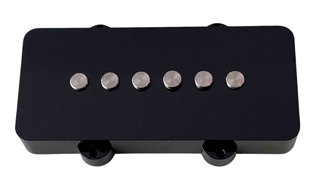

Starwood Jazzmaster

Classic Jazzmaster style

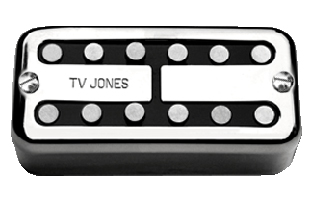

Magna'Tron

Dual coil with a unique mix
of single-coil spank meets
FilterTron style twang.
C
lear tone  - No 60 cycle hum

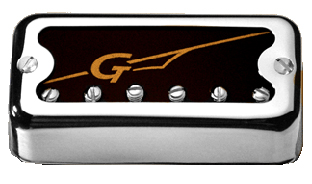

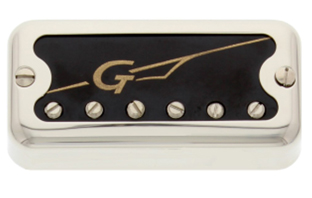

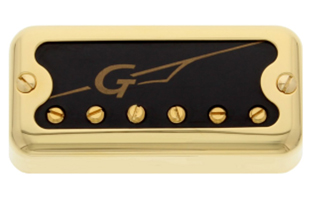

TV-HT

Hilo'Tron style pickup
S
ingle coil with warmth and bite
C
lanky tone - Subtle mids



T-Armond

DeArmond style pickup
Single coil - Plenty of twang
Clear transparent tone



BASS PICKUPS

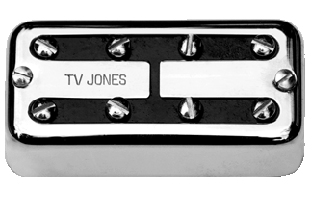

Thunder'Tron

All-around bass pickup with
superior dynamic sensitivity
and punch

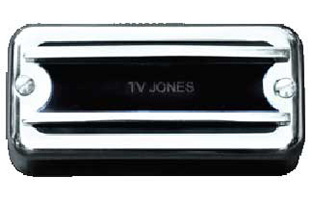

Thunder'Blade

Bold, warm and full with a
rounder top end, yet with clarity

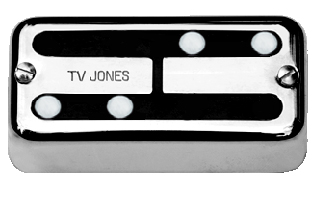

Thunder'Mag

Quick attack with exceptional
pop and clarity followed by
a voluptuous bottom-end










MOUNTING OPTIONS:

TV Jones pickups finns i olika monteringsutföranden för att passa just din gitarr. Klicka på bilderna för mer info.








NO EARS  MOUNT
(UNIVERSAL)


ENGLISH  MOUNT
(UNIVERSAL)


HUMBUCKER  MOUNT


ORIGINAL GRETSCH  MOUNT



SOAPBAR  MOUNT



DeARMOND  MOUNT



ABOUT THE COMPONENTS

MAGNETS
We have analyzed the late ‘50s AlNiCo Filter'Tron magnets and reproduced them especially for use in our pickups. We found the original magnet manufacturer that supplied magnets for the actual vintage Filter’Tron pickups and deal directly with them.

POLE PIECES
Our pole screws are custom manufactured to spec here in the USA. Different alloys and style of pole pieces (screws, blades, cylinder magnets) are used for different tonal variations.

BOBBIN DESIGN
TV Jones bridge bobbins have a slightly wider pole-to-pole width to aid in centering the pole screws under the guitar strings in the bridge pickup position. Our neck pickups have a narrower pole-to-pole width. Most factory-made pickups have the same pole-to-pole spacing for the neck and bridge positions.










TV Classic Universal Mount





TV Classic DeArmond Mount

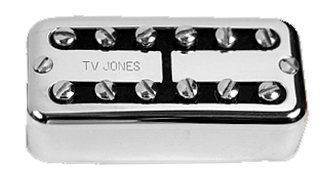

TV CLASSIC                Vintage twang & growl

Den mest populära pickupen. Samma sound som en 1950 Filter'Tron med vintage twang & growl. Pickupen för rock, rockabilly, blues, country mm.

The pickup that started it all - the TV Classic captures that vintage twang and growl characteristic of the late 1950's Filter'Tron. Originally designed from an analyzed 1959 "Pat. Applied For" Filter'Tron, the TV Classic is our most popular and most versatile pickup. Popularized and played by many different artists ranging from John Mayer to Brian Setzer.

Tone/Characteristics
Between a typical Fender (bright single-coil) & Gibson (darker & thick humbucker) with a unique growl when you dig in. Clean, compressed treble and mids breath life over a tight and controlled low-end.

Output/Power/Position
Bridge: DCR - 4.8k / Inductance - 1.83H
Neck: DCR - 4.0k / Inductance - 1.4H



TV Classic Bridge
Har mer styrka och bredare utrymme mellan magnet-polerna för att balansera hals- pickupen.
chrome nickel gold brushed nickel
TVFTB-UV Universal Mount Pris: 1.795:- 1.795:- 1.865:- 1.925:-
TVFTB-DA DeArmond Mount  Pris: 1.865:- 1.865:- 1.925:-
TVFTB-SB Soapbar Mount Pris: 1.695:- 1.695:- 1.745:-
TVFTB-HB  Humbucker Mount Pris: 1.865:- 1.865:- 1.925:-
TVFTB-HB Humbucker M  black cover Pris: 1.825:- 1.825:- 1.895:-

TV Classic Neck
Hals-pickupen är en exakt kopia av en 1959 Filter Tron.
chrome nickel gold brushed nickel
TVFTN-UV  Universal Mount Pris: 1.795:- 1.795:- 1.865:- 1.925:-
TVFTN-DA DeArmond Mount  Pris: 1.865:- 1.865:- 1.925:-
TVFTN-SB Soapbar Mount Pris: 1.695:- 1.695:- 1.745:-
TVFTN-HB  Humbucker Mount   Pris: 1.865:- 1.865:- 1.925:-
TVFTN-HB Humbucker M  black cover Pris: 1.825:- 1.825:- 1.895:-

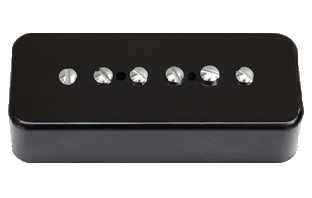

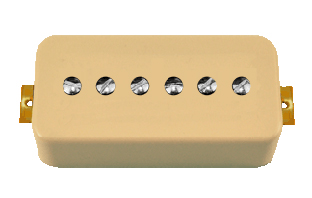

TV Classic Soapbar Mount  cream or black cover




TV Classic Humbucker Mount














  Universal Mount                     DeArmond Mount


    Soapbar Mount                    Humbucker Mount

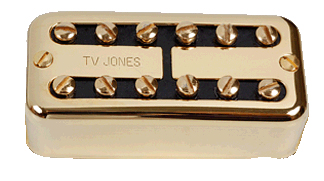

TV CLASSIC PLUS      Higher output & fuller all-around tone


En stall-monterad pickup med mörkare ton och mera kraft. Den är lindad med tunnare magnet-tråd, vilket ger mer uteffekt. Som en vintage Filter Tron pickup med mer ”attityd”.

This bigger, badder, older sibling to the TV Classic is a bridge position only pickup that packs a mighty punch. Using thinner gauge wire, it saturates quicker with punchy mids but keeps that "Classic" Filter'Tron vibe.

Tone/Characteristics
Like a TV Classic but with more attitude, the TV Classic Plus is wound with thinner gauge wire providing a slightly rounder top-end and a touch more output. Many players wish for a Filter'Tron that has "more" to it's sound...this pickup fills that need very well. Installing the TV Classic Plus with a Super'Tron paves the way for some serious Chet Atkins glory (check out his '59 Country Gentleman) but is also a wonderful combination that brings out some of the best sounds in our line (and secretly one of TV's favorite combinations).

Output/Power
Bridge (only): DCR - 7.8k / Inductance - 2.83H



OBS: Endast Bridge
chrome nickel gold brushed nickel
TVFTP-UV Universal Mount Pris: 1.840:- 1.840:- 1.895:- 1.965:-
TVFTP-DA DeArmond Mount  Pris: 1.895:- 1.895:- 1.965:-
TVFTP-SB Soapbar Mount Pris: 1.720:- 1.720:- 1.780:-
TVFTP-HB  Humbucker Mount Pris: 1.895:- 1.895:- 1.965:-
TVFTP-HB  Humbucker M  black cover Pris: 1.865:- 1.865:- 1.925:-




















BRIAN SETZER Signature Pickup

Efter mer än 20 års samarbete är TV Jones stolta att kunna presentera sin första signatur-pickup åt en artist; TV Jones Brian Setzer signatur-modell. Setzer-pickupen utgår från Brians förkärlek för TV Classic modellen som är den mest mångsidiga och populära humbucker i TV Jones serien. Den härrör från början från Tom´s första dissektion och nära studie av en viss´59 FilterTron från Brians egen gitarr vilket blev referenspunkten för TV Classic pickupen.

The Brian Setzer Signature pickup is derived from Brian's longtime preference for our TV Classic but is a bit more over-the-top than our other Filter'Tron creations. It features a proprietary design which employs special-alloy pole screws (with more steel) and mismatched coils which highlight the response of the magnet. This combination of small tweaks provides a perfect sonic match to the man's persona and musicianship.

Tone/Characteristics
Utilizing unique coils and pole pieces, this design provides more clarity while producing some of the punchiest low-mid response in our line. The classic Setzer sound is slightly overdriven yet clear, with a defined and tight/punchy low end. With slightly higher output than a TV Classic, the Setzer Signature punches through a mix with ease and dexterity.

Output/Power/Position
Bridge: DCR - 6.3k / Inductance - 2.35H
Neck: DCR - 4.5k / Inductance - 1.7H

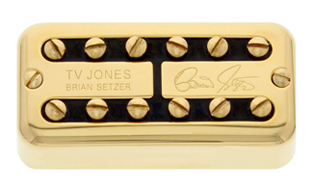

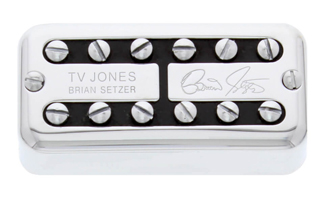

Brian Setzer Bridge
chrome nickel gold brushed nickel
TVBSB-UV Universal Mount Pris: 1.995:- 1.995:- 2.095:- 2.155:-
TVBS1-EM English Mount Pris: 1.795:-

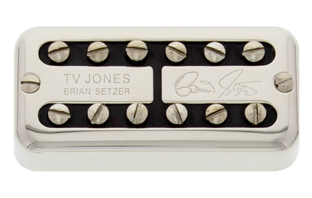

Brian Setzer Neck

chrome nickel gold brushed nickel
TVBSN-UV Universal Mount Pris: 1.995:- 1.995:- 2.095:- 2.155:-
TVBS2-EM English Mount Pris: 1.795:-






The original FilterTron
invented by Ray Butts

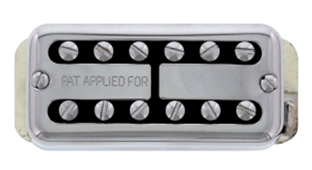

Ful-Fidelity - PAT. APPLIED FOR

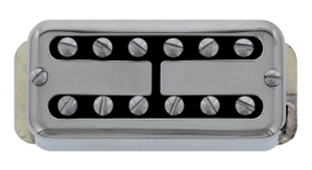

Ful-Fidelity - Blank Cover

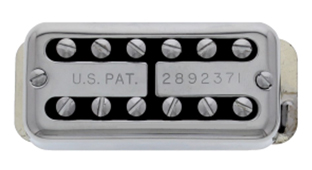

Ful-Fidelity - U.S. PAT 2892371




Original Gretsch Mount                 No Ears Mount


Ray Butts FUL-FIDELITY Filter'Tron

Some parts of history are so legendary that they never die. The original Filter'Tron, invented by Ray Butts and originally called the "Ful-Fidelity" in his technical journals is one of those things. These pickups are made according to Ray's personal notes, designs and Jones' extensive, multi-decade analysis of original Filter'Tron pickups. Butts was awarded one of the first patents for a hum-canceling guitar pickup (No. 2,892,371, June 30, 1959.)

"This is the real deal...each offering includes all of the original design's bells and whistles...the vintage pole spacing, covers, original zinc-coated backplate used by Gretsch at that time - and more. In Ray's era, factory made guitar pickups were not wax saturated as they are now. These pickups will not be saturated in order to remain absolutely historically correct," said Jones. "I notice a more three-dimensional, open-air quality to the tone of a pickup that is not saturated in wax. Microphonic feedback is not a big issue with this design. To be clear though - I do find waxing necessary for higher-gain, "squeal-less" applications."

Cover Options:
- "Blank Cover”   (Late 1957-1958)
- "PAT. APPLIED FOR”  (1959 - Early 1960)
- "U.S. PAT 2892371”  (1960 and onward"

Tone/Characteristics
Tighter bass response and slightly more top end EQ than a TV Classic. Truly unique sparkle and dynamics provided by the lower output and absence of wax. If you want that unmistakable Great Gretsch Sound then these pickups are the way to go.

Output/Power/Position
Bridge: DCR - 4.2k / Inductance - 1.7H
Neck: DCR - 3.8k / Inductance - 1.4H



Ray Butts Ful-Fidelity  Bridge
chrome nickel gold
TVRBB-OM  Original Gretsch Mount Pris: 2.195:- 2.195:- 2.265:-
TVRBB-OM-PAF Original Gretsch M. - PAF cover Pris: 2.195:- 2.195:- 2.265:-
TVRBB-OM-USP Original Gretsch M. - USP cover Pris: 2.195:- 2.195:- 2.265:-
TVRBB-NE No Ears Mount  Pris: 2.195:- 2.195:- 2.265:-

Ray Butts Ful-Fidelity  Neck
chrome nickel gold
TVRBN-OM  Original Gretsch Mount Pris: 2.195:- 2.195:- 2.265:-
TVRBN-OM-PAF Original Gretsch M. - PAF cover Pris: 2.195:- 2.195:- 2.265:-
TVRBN-OM-USP Original Gretsch M. - USP cover Pris: 2.195:- 2.195:- 2.265:-
TVRBN-NE No Ears Mount  Pris: 2.195:- 2.195:- 2.265:-


                        Ray Butts






The Zoom’Tron is now "The Billy Zoom’Tron

A clear, subtle aggressive
punchy tone with a good
amount of headroom









BILLY ZOOM 'TRON

The Billy Zoom’Tron has a more subtly aggressive, punchy tone. A versatile design, which offers a clearer, more traditional Gretsch single-coil Dynasonic sound. They have a good amount of headroom for clean or slightly overdriven tones. And with no 60 cycle hum!

Bridge: DCR - 12.60k / Inductance - 3.25H.
Neck: DCR - 7.25k / Inductance - 1.70H

The Billy Zoom'Tron guitar pickup is currently
only available in the Universal Mount


Billy Zoom'Tron  Bridge
chrome nickel gold brushed nickel
TVZTB-UV Universal Mount Pris: 2.180:- 2.180:- 2.240:- 2.305:-

Billy Zoom'Tron  Neck
chrome nickel gold brushed nickel
TVZTN-UV Universal Mount Pris: 2.180:- 2.180:- 2.240:- 2.305:-







Combinding blades and polescrews
provides a big full sound with
exceptional string separation

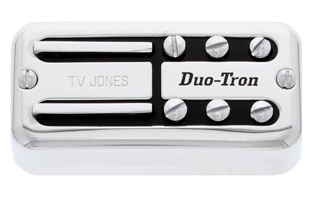

Duo-Tron Bridge - Chrome

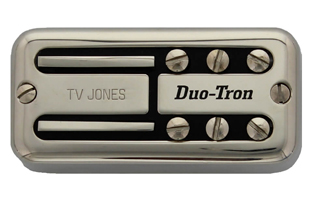

Duo-Tron Bridge - Nickel

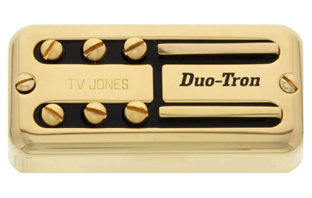

Duo-Tron Neck - Gold

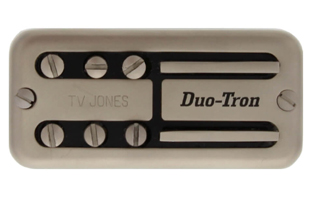

Duo-Tron Neck - Industrial Velvet









Paul Yandell´s DUO-TRON

Developed with Chet Atkins in mind by master fingerpicker and Chet's best friend, Mr. Paul Yandell. The Paul Yandell Duo-Tron has a unique tonal experience, infusing steel blades and screws as pole pieces in opposite positions on the pickups. This provides exceptional string to string note separation and supplies a whole new character to the sound.

Tone/Characteristics
The Duo-Tron's proprietary design combines blades and pole screws to highlight the response of the magnet. The blades provide a bigger note and are well-suited for finger-picking styles. The player won't lose any sensitivity bending the treble strings and will notice a fuller, bolder response that affects both sound - and equally important - feel. The bass side dials in a tone directly reminiscent of Ray's original Filter'Tron - but with a touch more dynamic attack that is a little more focused and rounded.

Output/Power/Position
Bridge (only): DCR - 7.6k / Inductance - 2.97H
Neck: DCR - 4.0k / Inductance - 1.60H

Likeness/Derived from:
Super'Tron, TV Classic and TV Classic Plus



Duo-Tron Bridge
chrome nickel gold Industrial
velvet
TVPYB-UV  Universal Mount Pris: 2.120:- 2.120:- 2.180:- 2.240:-

Duo-Tron Neck
chrome nickel gold Industrial
velvet
TVPYN-UV  Universal Mount Pris: 2.120:- 2.120:- 2.180:- 2.240:-

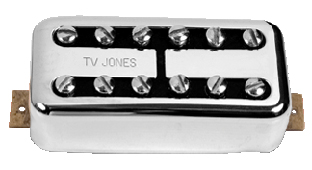

PowerTron English Mount




Universal Mount




POWER'TRON        TV Classic on steroids - Clear lows

En pickup med starkare mellanregister och högre uteffekt än TV Classic pickupen.

The Power'Tron was born out of our desire to create a pickup that has the character of a PAF-style humbucker yet retains the essence of a Filter'Tron. Larger bobbins, standard HB sized wire, and more windings create a badder, gnarlier older brother to the TV Classic (and TV Classic Plus).

Tone/Characteristics
Mixing the vintage tone of a golden-age PAF with the rockabilly twang of a late-'50s Filter'Tron. Full body and a clear top end that is naturally dynamic. Digging in reveals a chunky low-end breakup paired with a barky top-end grit that sounds amazing through a tube amp. This is a great choice if you like the overall Filter'Tron sound but want more guts and glory than usually provided by lower output pickups.

Output/Power/Position
Bridge: DCR - 7.8k / Inductance - 4.75H
Neck: DCR - 5.0k / Inductance - 2.24H



Power'Tron Bridge
Två extra långa spolar med mer magnet-tråd ger en fyllig rik ton, mycket lik en 1950 PAF Humbucker.
chrome nickel gold brushed nickel
TVPTB-UV  Universal Mount Pris: 1.865:- 1.865:- 1.925:- 1.995:-
TVPTB-DA DeArmond Mount  Pris: 1.925:- 1.925:- 1.995:-
TVPTB-SB Soapbar Mount Pris: 1.745:- 1.745:- 1.795:-
TVPTB-HB  Humbucker Mount Pris: 1.925:- 1.925:- 1.995:-

Power'Tron Neck
Tonen är något mörkare och varmare än TV Classic Neck.
chrome nickel gold brushed nickel
TVPTN-UV  Universal Mount Pris: 1.865:- 1.865:- 1.925:- 1.995:-
TVPT2-NE  No Ears Mount Pris: 1.195:- 1.245:-
TVPT2-EM English Mount Pris: 1.335:-
TVPTN-DA DeArmond Mount  Pris: 1.925:- 1.925:- 1.995:-
TVPTN-SB Soapbar Mount Pris: 1.745:- 1.745:- 1.795:-
TVPTN-HB  Humbucker Mount Pris: 1.925:- 1.925:- 1.995:-
TVPTN-HB  Humbucker M  black cover Pris: 1.895:- 1.895:- 1.950:-
TVPTB-HB  Humbucker M  black cover Pris: 1.895:- 1.895:- 1.950:-






DeArmond Mount


Soapbar Mount  cream or black cover








TV Classic Humbucker Mount

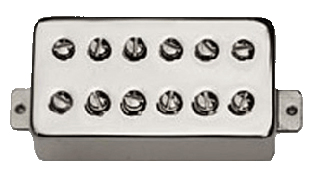

PowerTron Plus Humbucker Mount chrome




  Universal Mount                     DeArmond Mount


         Soapbar Mount               Humbucker Mount black









POWER'TRON PLUS     PAF-like tone with thicker highs

En stall-monterad pickup lindad med mer magnet-tråd än Power Tron. Ger mer uteffekt och brett mellanregister. Är framtagen tillsammans med Billy Gibbons från ZZ Top.

When Billy Gibbons of ZZ Top called up and requested an even hotter bridge pickup that could handle his fiery riffs, we knew we had to take it to the next level. The Power'Tron Plus is the hottest Filter'Tron pickup we make and perfect for everything from creamy blues, to hard-rock, to metal. It's a bridge position only pickup that pairs extremely well with Power'Tron, T-90, and even T-Armond neck pickups!

Tone/Characteristics
Designed with standard PAF magnet wire to resemble a hotter Gibson PAF Humbucker (in the 8.5k DCR range) while retaining the core Filter'Tron characteristics.
The lows are tighter and more defined than a traditional Humbucker but it barks and growls generously when digging in. Lastly, it cuts through the mix really well for solos and chunky riffing.

Output/Power
Bridge (only): DCR - 8.5k / Inductance - 5.25H



OBS: Endast Bridge
chrome nickel gold brushed nickel
TVPTP-UV  Universal Mount Pris: 1.895:- 1.895:- 1.965:- 2.035:-
TVPT1+-NE  No Ears Mount Pris: 1.225:-
TVPT1+-EM English Mount Pris: 1.370:-
TVPTP-DA DeArmond Mount  Pris: 1.965:- 1.965:- 2.035:-
TVPTP-SB Soapbar Mount Pris: 1.780:- 1.780:- 1.840:-
TVPTP-HB  Humbucker Mount Pris: 1.965:- 1.965:- 2.035:-
TVPTP-HB  Humbucker M  black cover Pris: 1.925:- 1.925:- 1.995:-






  Universal Mount


DeArmond Mount


Soapbar Mount

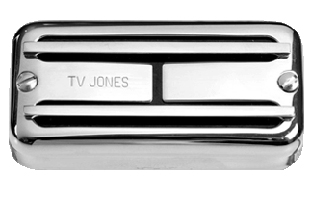

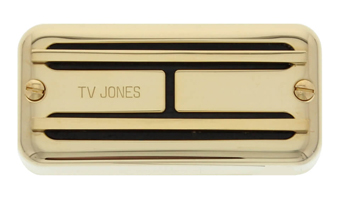

SUPER'TRON        Bold - full & clear

En TV Classic pickup med stålskenor istället för pol-skruvar, vilket ger en större magnet-yta med full kraft.

The TV Jones Super'Tron is a replica of the original early 1960's prototype design. It is basically a TV Classic with steel blades instead of pole screws and the resulting tone retains classic Filter'Tron clarity, but with a bold and full broadband punch. Bridge blades are curved and neck blades are flat for optimal string to string energy.

Tone/Characteristics
The steel blades used in the Super'Tron provide a larger magnetized surface area producing greater inductance. While the DC Resistance is the same as the TV Classic, you will notice a little more output and body with a slightly more accentuated lower-mid range.
Warmer and less aggressive than the mid 1960's Gretsch Super'Trons (which had a bunch of thin laminated steel blades instead of one piece of steel). Great choice for finger picking, jazz, punk, blues... it has been said that this design was loved by Chet Atkins (according to Paul Yandell).

Output/Power/Position
Bridge: DCR - 4.8k / Inductance - 2.64H
Neck: DCR - 4.0k / Inductance - 1.81H

SuperTron Bridge
Stallmonterad pickup med stålskenor. Som en TV Classic med tjockare ton.
chrome nickel gold brushed nickel
TVSTB-UV  Universal Mount Pris: 1.945:- 1.945:- 2.010:- 2.070:-
TVSTB-DA DeArmond Mount  Pris: 2.010:- 2.010:- 2.160:-
TVSTB-SB Soapbar Mount Pris: 1.825:- 1.825:- 1.895:-

SuperTron Neck
Neck-pickupen har magnet-skenor och ger en klar varm ton.
chrome nickel gold brushed nickel
TVSTN-UV  Universal Mount Pris: 1.945:- 1.945:- 2.010:- 2.070:-
TVSTN-DA DeArmond Mount  Pris: 2.010:- 2.010:- 2.070:-
TVSTN-SB Soapbar Mount Pris: 1.825:- 1.825:- 1.895:-



  Universal Mount                     DeArmond Mount


    Soapbar Mount


Humbucker Mount







MagnaTron       Clear tone  - No 60 cycle hum

Har rockabilly ”twang” med energisk ton och bra skärpa.

The Magna'Tron blends single-coil twang with unique Filter'Tron & DeArmond influence. Although it can sound just like a single-coil, it is built with two coils (humbucking). The dual-coils provide a hint of compression on the high-end and no 60-cycle hum. One part of the recipe that makes the Magna'Tron so special is its staggered cylinder Fender-style magnets.

Tone/Characteristics
Bright and chirpy with quick attack and exceptional pop and clarity.
The Magna'Tron delivers a unique mix of single-coil spank meets Filter'Tron style twang with no hum! Slightly brighter and tighter on the bass than the TV Classic.

Output/Power/Position
Bridge: DCR - 8.0k / Inductance - 2.92H
Neck: DCR - 4.8k / Inductance - 1.24H



MagnaTron Bridge
Två extralånga lindningar med bredare utrymme mellan magnet-polerna ger bra uteffekt och skärpa.
chrome nickel gold brushed nickel
TVMTB-UV  Universal Mount Pris: 1.950:- 1.950:- 2.015:- 2.075:-
TVMT1-NE  No Ears Mount Pris: 1.245:-
TVMTB-DA DeArmond Mount  Pris: 2.015:- 2.015:- 2.075:-
TVMTB-SB Soapbar Mount Pris: 1.825:-
TVMTB-HB  Humbucker Mount Pris: 2.015:- 2.015:- 2.075:-
TVMTB-HB  Humbucker Mount  b/w Pris: 1.975:-

MagnaTron Neck
Är lindad med mindre magnet-tråd som ger en mjuk klar ton.
chrome nickel gold brushed nickel
TVMTN-UV  Universal Mount Pris: 1.950:- 1.950:- 2.015:- 2.075:-
TVMTN-DA DeArmond Mount  Pris: 2.015:- 2.015:- 2.075:-
TVMTN-SB Soapbar Mount Pris: 1.825:-
TVMTB-HB  Humbucker Mount Pris: 2.015:- 2.015:- 2.075:-
TVMTB-HB  Humbucker Mount  b/w Pris: 1.975:-










TV-HT        Clanky tone - Subtle mids

Ger en varm kraftfull ton med fint mellanregister.

The TV-HT is our take on the famed Gretsch HiLo'Tron pickup. This single-coil pickup is made close to the original but with a bit more output in the bridge position. This gives the sound more integrity and push - often what players wanted from the original HiLo'Trons. These pickups are also made to be hum-cancelling in the middle position (when both are on).

Tone/Characteristics
Twangy, clanky single-coil goodness with a touch of natural midrange. The TV-HT is designed to produce twangy bass and crisp highs perfect for that old school sound, but also surprisingly cool with a lot of gain (due to its low output and translucent clarity).
If you are a player who likes it crystal clear with a nice'n tight bass response (even more so than the TV Classic and Magna'Tron) - these are for you.

Output/Power/Position
Bridge: DCR - 4.3k / Inductance - 1.85H
Neck: DCR - 3.4k / Inductance - 1.22H


TV-HT Bridge
En förbättring av den stallmonterade Vintage HiloTron pickupen. Bredare utrymme mellan magnet-polerna och ökad output.
chrome nickel gold brushed nickel
TVHTB-UV  Universal Mount Pris: 1.775:- 1.775:- 1.825:- 1.895:-

TV-HT
Neck
En exakt kopia av en Vintage 1960 HiloTron pickup.
chrome nickel gold brushed nickel
TVHTB-UV  Universal Mount Pris: 1.775:- 1.775:- 1.825:- 1.895:-



T-90  Soapbar Mount


T-90  English Mount Cream




Original Gretsch Mount                 No Ears Mount


    Soapbar Mount (Gold screws)


No Ears Mount TS-style       English Mount TS-style







T-90        Fatter P-90 - Clear & transparent

Den traditionella P-90 designen möter TV Jones. En fyllig och tjock ton med bra skärpa. Har aldrig låtit bättre.

The T-90 is our answer to the traditional P-90 pickup that combines a classic design with a touch of TV Jones sparkle and clarity. The result is a full & fat sound with clear, transparent overtones.

Tone/Characteristics
The bridge pickup has thicker highs and more defined lows than what is commonly heard from traditional P-90s. We use Filter'Tron pole screws and wider pole-to-pole spacing on the bridge pickup.
This provides more inductance for a thicker tone and plenty of dynamics. The neck pickup has good clarity and warmth - considerably less boomy than traditional P-90s.

Output/Power/Position
See the specific mounting option that best suits your guitar for the resistance and inductance.



T-90 Bridge
Har ¼ alnico Filter Tron bar magneter och Filter Tron pol-skruvar, vilket ger bredd och dynamik i hög som låg ton. Bättre än en traditionell P-90.
Available in Black or Cream chrome nickel gold
TVT9B-OM  Original Gretsch Mount Pris: 1.740:- 1.740:- 1.795:-
TVT9B-NE  No Ears Mount Pris: 1.795:- 1.795:- 1.865:-
TVT9B-EM English Mount Pris: 1.795:- 1.795:- 1.865:-
TVT9B-SB Soapbar Mount Pris: 1.565:- 1.565:- 1.625:-

T-90 Neck
Har 1/8 alnico IV bar magneter som ger en varm och klar ton. Betydligt mindre boomig än en vanlig P-90.
Available in Black or Cream chrome nickel gold
TVT9N-OM  Original Gretsch Mount Pris: 1.740:- 1.740:- 1.795:-
TVT9N-NE  No Ears Mount Pris: 1.795:- 1.795:- 1.865:-
TVT9N-EM English Mount Pris: 1.795:- 1.795:- 1.865:-
TVT9N-SB Soapbar Mount Pris: 1.565:- 1.565:- 1.625:-










DeArmond Mount bridge        DeArmond Mount neck


    Soapbar Mount  Black or Cream


No Ears Mount                   English Mount


 Original Gretsch Mount







T-Armond        Single coil - Plenty of twang

Ger en klar balanserad ton. Justerbara cylinder magneter gör att varje sträng kan få sin egen perfekta DeArmond ton.

Our version of the original DeArmond 2000 pickups are more controlled in the high frequencies, taking away earth shattering ice-pickiness while keeping that "off-the-rails" attitude that these pickups are known for. Of course, at lower gain levels they sing with unmatched fidelity and clarity. This version of the T-Armond with the proprietary T-Series cover makes it easy to suspend in a humbucker or Filter'Tron cavity.

Tone/Characteristics
The T-Armonds are in a league of their own with crystal clear highs, bellowing lows, and a tastefully controlled midrange. They perform really well with and without a lot of gain.
Some say they sound like tele pickups on steroids.

Output/Power/Position
Bridge: DCR - 11.8k / Inductance - 4.56H
Neck: DCR - 7.8k / Inductance - 3.38H



T-Armond Bridge
Genom bredare utrymme mellan polerna hamnar magneterna direkt under varje sträng. Tunnare lindning ger en tjockare ton med optimal output.
chrome nickel gold
TVTAB-DA DeArmond Mount  Pris: 2.180:- 2.180:- 2.240:-
TVTAB-SB Soapbar Mount Pris: 2.120:-
TVTAB-NE  No Ears Mount T-series Pris: 2.180:- 2.180:- 2.240:-
TVTAB-EM English Mount  T-series Pris: 2.180:- 2.180:- 2.240:-
TVTAB-OM  Original Gretsch Mount Pris: 2.180:- 2.180:- 2.240:-

T
-Armond Neck
Med kortare cylinder-magneter levererar hals-pickupen en klar och tydlig balanserad ton.
chrome nickel gold
TVTAN-DA DeArmond Mount  Pris: 2.180:- 2.180:- 2.240:-
TVTAN-SB Soapbar Mount Pris: 2.120:-
TVTAN-NE  No Ears Mount  T-series Pris: 2.180:- 2.180:- 2.240:-
TVTAN-EM English Mount  T-series Pris: 2.180:- 2.180:- 2.240:-
TVTAN-OM  Original Gretsch Mount Pris: 2.180:- 2.180:- 2.240:-






Classic Tele sound with a
dynamic & transparent top end



Tele Bridge                                Tele Neck









Starwood TELE

After years of requests we finally introduced the Starwood Tele in 2016 and it has stayed in our top 5 best sellers since. We strived to make the Starwood Tele a musical pickup. With a large dynamic range and just the right amount of punchy growl when you dig in, these tele pickups will make you wonder why you ever settled for less.

Tone/Characteristics
Using T-Armond guts to add body and spank, these pickups scream classic tele but with a dynamic and transparent top end. Just the right amount of punchy spank - everything you want out of a tele (and more!).

Output/Power/Position
Bridge: DCR - 11.7K / Inductance - 4.03H
Neck: DCR - 7.4k / Inductance - 2.45H

BRIDGE position:
Resistance: 11.7K
Inductance: 4.03H
Recommended Pot Value: 250k

NECK position:
Resistance: 7.4K
Inductance: 2.45H
Recommended Pot Value: 250k



Starwood Tele Bridge
raw
TVPSB-TS Traditional Mount Pris: 1.630:-

Starwood Tele Neck

chrome nickel gold
TVPSN-TS Traditional Mount Pris: 1.690:- 1.690:- 1.755:-








 Classic Strat pickups with fuller
presence and bright top end


Starwood Strat Neck


Starwood Strat Middle


Starwood Strat Bridge









Starwood STRAT

Full bodied T-Armond meets classic Strat. We build our Starwood Strat Pickups with some of the same components that we use in our T-Armonds. This gives them a fuller presence while keeping the top end bright with no ice-pick shrillness. The Starwood Series, our take on more popular pickup styles, are made to be musical pickups - not just period/vintage-correct.

Tone/Characteristics
The bridge pickup sparkles with a husky presence (due to our patent-pending steel keeper), while the middle pickup growls with clarity and works almost like a secondary bridge tone. The neck position has explosive dynamics with a wide Q - reminiscent of a large single-coil DeArmond. Of course, position 2 and 4 reveal the quirkiest quack and spank.

Output/Power/Position
Bridge: DCR - 11.25k / Inductance - 4.14H
Middle: DCR - 7.4k / Inductance - 2.31H
Neck: DCR - 7.1k / Inductance - 2.13H

NECK position:
Resistance: 7.1k
Inductance: 2.13H
Recommended Pot Value: 250k

MIDDLE position:
Resistance: 7.4k
Inductance: 2.31H

Recommended Pot Value: 250k

BRIDGE position:
Resistance: 11.25k
Inductance: 4.14H
Recommended Pot Value: 250k



Starwood Strat Bridge
parchment white black
TVSWB-SS Traditional Mount Pris: 1.385:- 1.385:-

Starwood Strat Middle

parchment white black
TVSWM-SS Traditional Mount Pris: 1.325:- 1.325:-

Starwood Strat Neck

parchment white black
TVSWN-SS Traditional Mount Pris: 1.325:- 1.325:-







JazzMaster black


JazzMaster white


JazzMaster parchment








Starwood JAZZMASTER

The Starwood line combines a classic TV Jones tone in a traditional shape. Available in Black, White and Parchment.

 - Tone/Characteristics -
Bridge has a thick glitter tone with beefy bottom end, while the neck is full bodied with clarity

- Output/Power/Position -
Bridge: DCR - 12.75k / Inductance - 5.58H
Neck: DCR - 9.10k / Inductance - 3.95H



Starwood JazzMaster Bridge
black white parchment
TVSJB-JM Jazzmaster Mount Pris: 1.545:- 1.545:- 1.545:-

Starwood JazzMaster Neck

black white parchment
TVSJN-JM Jazzmaster Mount Pris: 1.545:- 1.545:- 1.545:-






 Clear, articulate and punchy
Smooth, clear highs in the bridge
and full-bass tone in the neck position.


Humbucker Mount nickel


Humbucker no cover zebra




Humbucker neck chrome         Humbucker bridge gold


Humbucker no cover black








Starwood HUMBUCKER

The Starwood Humbucker is the latest installment to the Starwood Series which is our take on the more popular, traditional Humbucker & Single Coil pickups. Our lightly wound coils help produce more clarity, while the inductance is increased with the use of our proprietary steel pole screws, slugs, and magnet keepers.

Tone/Characteristics
The goal was to achieve a musical set of humbucking pickups. With smooth, clear highs in the bridge position, and a no-mud, full-bass tone in the neck position. The result is a workhorse pickup - clear, articulate and punchy - combining all of the best characteristics of a traditional humbucker.

Output/Power/Position
Bridge: DCR - 8.3k / Inductance - 5.06H
Neck: DCR - 7.0k / Inductance - 3.69H





Starwood Humbucker Bridge
chrome nickel gold
TVSHB-HB Humbucker Mount Pris: 1.995:- 1.995:- 2.060:-
TVSHB-HBB No Cover Black bobbins Pris: 1.880:- 1.880:- 1.940:-
TVSHB-HBZ No Cover Zebra bobbins Pris: 1.880:- 1.880:- 1.940:-

Starwood Humbucker Neck

chrome nickel gold
TVSHN-HB Humbucker Mount Pris: 1.995:- 1.995:- 2.060:-
TVSHN-HBB  No Cover Black bobbins Pris: 1.880:- 1.880:- 1.940:-
TVSHN-HBZ No Cover Zebra bobbins Pris: 1.880:- 1.880:- 1.940:-














TV Jones Limited Edition Humbucker

Vi är stolta att presentera TV Jones Limited Edition Humbucker.
Den första Humbucker pickup i PAF-stil någonsin från TV Jones
är influerad av de stora gitarrhjältarna från 60-70-talet.
Handgjord i USA. Har kristallklar ton med definition och punch.

Limiterad utgåva om 100 kalibrerade set numrerade 001-200
(hals & stall mick). Kommer med äkthets-certifikat signerat av Tom V. Jones.

TVLEH   Limited Ed. Humbucker SET MATCHED PAIR   Pris: 2.795:-










 BASS PICKUPS






Universal M. neck chrome            Universal M. nickel


DeArmond Mount                    Soapbar Mount







Thunder'Tron

Basgitarr pickupen med överlägsen dynamik, känslighet och en suverän kraftfull ton.

Named by Saul Koll of the Koll Guitar Company for it's thunderous bottom-end, the Thunder'Tron is an all-around stand-out performer with superior dynamic sensitivity and punch. Made somewhat similarly to the TV Classic, it exudes clarity but is backed up by a forceful and vigorous low end.

Tone/Characteristics
String-to-string response is excellent, and notes ring out with supreme fullness...a great all around bass pickup that can get edgy if you dig in with a pick, or lay low with some light finger picking. In between the Thunder'Mag (slightly brighter) and Thunder'Blade (slightly warmer) when it comes to top-end eq.

Output/Power/Position
Bridge: DCR - 4.8k / Inductance - 1.62H
Neck: DCR - 4.0k / Inductance - 1.21H

ThunderTron Bridge
chrome nickel gold brushed nickel
TVTTB-UV  Universal Mount Pris: 1.815:- 1.815:- 1.895:- 1.925:-
TVTTB-DA DeArmond Mount  Pris: 1.880:- 1.880:- 1.940:-
TVTTB-SB Soapbar Mount Pris: 1.695:- 1.695:- 1.755:-

ThunderTron Neck
chrome nickel gold brushed nickel
TVTTN-UV  Universal Mount Pris: 1.815:- 1.815:- 1.895:- 1.925:-
TVTTN-DA DeArmond Mount  Pris: 1.880:- 1.880:- 1.940:-
TVTTN-SB Soapbar Mount Pris: 1.695:- 1.695:- 1.755:-









  Universal M. neck nickel       DeArmond Mount chrome


 Soapbar Mount











Thunder'Blade

Har stålskenor istället för polskruvar vilket ger en större magnet-yta. Levererar en klar kraftfull men mjuk ton. Bra val för basar med bred hals

The steel blades in the Thunder'Blade provide a larger magnetized surface area which in turn creates more inductance. This higher inductance creates a bolder, warmer, and fuller sound - the sound the the Thunder'Blade is known for.

Tone/Characteristics
Bold and full with a rounder top end yet with clarity. The Thunder'Blade is great for players who want a rounder sound with definition and is a great choice for motown, jazz, and finger styles especially.
The warmest of our 3 bass pickups.

Output/Power/Position
Bridge: DCR - 4.8k / Inductance - 2.79H
Neck: DCR - 4.0k / Inductance - 1.74H



Thunder Blade Bridge
chrome nickel gold brushed nickel
TVTBB-UV  Universal Mount Pris: 1.950:- 1.950:- 2.015:- 2.065:-
TVTBB-DA DeArmond Mount  Pris: 2.015:- 2.015:- 2.065:-
TVTBB-SB Soapbar Mount Pris: 1.830:- 1.830:- 1.890:-

Thunder Blade Neck
chrome nickel gold brushed nickel
TVTBN-UV  Universal Mount Pris: 1.950:- 1.950:- 2.015:- 2.065:-
TVTBN-DA DeArmond Mount  Pris: 2.015:- 2.015:- 2.065:-
TVTBN-SB Soapbar Mount Pris: 1.830:- 1.830:- 1.890:-









  Universal Mount                      Soapbar Mount

Thunder'Mag

En aggressiv ton med kraftfull diskant och mycket tyngd. T-Armond cylinder-magneter.

The unique tone of the Thunder'Mag is the result of offset T-Armond cylinder magnets which ensue a quick attack with exceptional pop and clarity followed by a voluptuous bottom-end.

Tone/Characteristics
The Thunder'Mag has been described as Rickenbacker-esque but more dynamic and less aggressive, for example - not harsh in the top-end EQ. Out of our three bass pickups, you will notice the most definition with your fingers/pick in the Thunder'Mag. Definitely a great choice if you want to cover a lot of genres, because it rounds out nicely with a tone control.

Output/Power/Position
Bridge: DCR - 8.0k / Inductance - 2.75H
Neck: DCR - 5.0k / Inductance - 1.13H



Thunder Mag Bridge
chrome nickel gold brushed nickel
TVTMB-UV  Universal Mount Pris: 1.965:- 1.965:- 2.025:- 2.080:-
TVTMB-SB Soapbar Mount Pris: 1.840:-

Thunder Mag Neck
chrome nickel gold brushed nickel
TVTMN-UV  Universal Mount Pris: 1.965:- 1.965:- 2.025:- 2.080:-
TVTMN-SB Soapbar Mount Pris: 1.840:-












TILLBEHÖR:

American Modern Tele Bridge Plate

Original Savalas Tele Bridge Plate


The TV Jones Modern Tele Bridge Plate allows
you to put a TV Classic, Power'Tron, Super'Tron or
Magnatron dual-coil pickup into your Telecaster. You
can even put in a TV-HT. Routing of your guitar is
mandatory to allow for the larger Filter'tron style
pickup to replace the stock single-coil pickup. The
full, bold sound of a TV Classic in the Tele is
amazing. A standard "no-ears" option works best.

Complete and ready to install.

This bridge plate is for the American Standard
Tele. Your guitar must have a bridge with
three mounting screws.
The dimensions of the
Modern Bridge Plate are shown here.

TV TBP-M3H-C     Chrome      Pris: 1.155:-
TV TBP-M3H-G     Gold           Pris: 1.395:-


Our custom TV Savalas Bridge Plate allows
you to put a TV Classic, Power'Tron, Super'Tron
or Magnatron dual-coil pickup into your Telecaster.
You can even put in aTV-HT. Routing of your guitar
is mandatory to allow for the larger Filter'tron style
pickup to replace the stock single-coil pickup.
The full, bold sound of a TV Classic in the Tele is
amazing. A standard "no-ears" option works best.

Complete and ready to install.

Additional Info: Your guitar must have a bridge
with four mounting screws. The dimensions of the
Savalas Bridge are shown here.

TV TBP-V4H-C     Chrome      Pris: 1.395:-
TV TBP-V4H-G     Gold           Pris: 1.695:-






Gretsch Bezel

For Professional Gretsch Guitars with an oversized cavity

TV RNG-GRTCH     Silver, Gold eller Clear      Pris: 130:-







Humbucker Ring Gibson style  (EM1)

Use with TV Jones Universal Mount/English Mount pickups

TV RNG-EM1     Svart eller Cream      Pris: 95:-







Humbucker Ring Gretsch style  (EM2)

Use with TV Jones Universal Mount/English Mount pickups

TV RNG-EM2     Silver, Gold eller Clear      Pris: 170:-












Humbucker Ring Dogear style (EM3)

Use with TV Jones Universal Mount/English Mount pickups

TV RNG-EM3     Svart eller Silver       Pris: 95:-



Ring Riser

Use to add height to your EM2 (Gretsch) English Mount pickup rings. Because some neck angles are greater on some guitars, these rings are needed to get pickups closer to the strings for superior tone.
Two risers are needed for bridge pickups and one for neck. Measures .101" (2.5mm) thick - Made of clear, heavy duty acrylic.


TV RR-EM2-C       RING-RISER EM2                     Pris: 40:-
TV SHM-RRPACK   RING-RISER EM2 (pack of 3)     Pris: 110:-









Webmaster
Copyright ©2005 [Brinks Musik AB]. All rights reserved
Granskad: 06 maj 2025
